Control Panels
Pump starters
- 4Smart start delta starter rating 20~150HP 3 phase 415V AC – Incomer 3 pole MCCB, 10~25kA.
- Electronic motor protection relay having D-time 0.30 sec. for motor protection against single phasing
- Optional facility: water level controller also available.
- Intelligent auto transformer starter rating 40~350HP 3 Phase 415V AC – Incomer 3 pole MCCB, 10~25kA
- Digital motor protection relay type mPro100 with 7 segment display to assure complete motor protection against overload, phase loss, under current, unbalance, motor stall, earth fault, lock rotor
- 5/Auto transformar, air cooled, 6 starts/hours with built-in thermister having tapping at 50%, 60% & 80% of the rated voltage
ELECTRIC PANELS

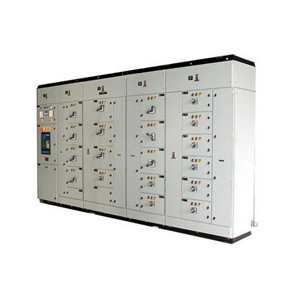

MCC PANEL
We are leading Electrical control panels manufacturing in chennai recognized as one of the leading manufacturers of (Motor Circuit Control) MCC panels widely appreciated all across the country. These have the capacity to feed larger loads and are designed as per the client specifications.

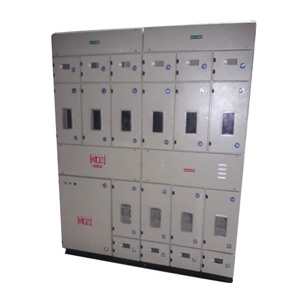

EB METERING PANELS
Main EB Incomer compartment connected to Bus bar and through Cut out, EB Metres and MCB are constructed.
Application:
It is to be installed EB Power Supply input point at the Resident or Site. Load has to be taken after the EB meter from this panel.

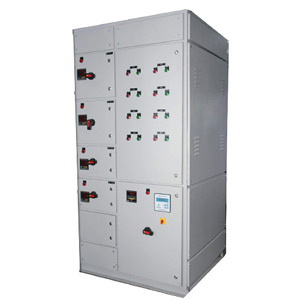

APFCR PANELS
We are leading Electrical control panels manufacturing in chennai manufacturing of the APFC Panels. Our APFC Panels are manufactured from high quality raw material. The power factor controller of our APFC Panels monitors the reactive power which in turn helps in saving energy. APFC Panels are available with capacitors which have built in protective devices for cutting extra power. APFC Panels manufactured by us are in accordance of requite norms and standards.

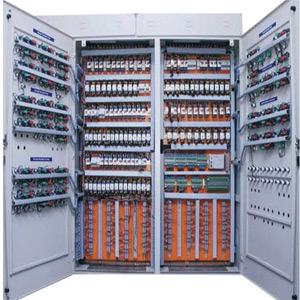

PLC PANELS
We are leading Electrical control panels manufacturing in chennai Synchronization panels are mainly designed and used to meet power system requirements. These panels provide manual as well as automatic synchronizing
function for one or more generator breakers. They are widely used in synchronizing generators and offering multiplexing solutions.
VFD PANELS
We are leading Electrical control panels manufacturing in chennai quality range of VFD CONTROL PANELS, which is offered at industry leading prices. At par with international standards, it is manufactured using quality raw material, which is procured from certified vendors. The panel helps in controlling the speed of the alternate current induction motor by manipulating the frequency of supply. Moreover, for smooth functioning of the panels, the voltage as well as the frequency is changed in same proportion.
